Single Stage Sanitary Piston Pump , Food Grade Sanitary Lobe Pump

Single Stage Sanitary Piston Pump , Food Grade Sanitary Lobe Pump

Brand Name : KongShi
Model Number : 0.75KW
Certification : ISO9001
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 10000 sets per month.
Delivery Time : 30 working days after receive the buyer's advance payment
Packaging Details : Standard Packing
Name : Sanitary Piston Pump
Model : 0.75KW
Medium : 20℃ clean water
Rotating Speed : 2900RPM
Impeller diameter : maximumφ130mm
Outlet Diameter : D2φ32mm
Contact Now

Single Stage Sanitary Piston Pump , Food Grade Sanitary Lobe Pump


Sanitary Piston Pump Application


Dairy, food, beverage, pharmacy, cosmetic, etc


Detailed Product Description
Name:Sanitary Piston PumpModel:0.75KW
Medium:20℃ Clean WaterRotating Speed:2900RPM
Impeller Diameter:Maximumφ130mmOutlet Diameter:D2φ32mm

Sanitary Piston Pump Motor


1. The motor conforms to the following standards GB 755-87

GB10069-88

Q/JBQS 28-20003. Excellent electric performance Low noise, low vibration Protection grade of high performance The standard protection grade of the motor is designed as lp54, IP55

According to user requirements, higher protection grade can be offered.

Suitable for use with double frequency and wide voltage.


Sanitary Piston Pump Features


The prominence of GOBOR pumps relies on many factors. The high performances and energy-saving performance of our pumps originate from the inside geometrical features, so that the excellent fluid features and simple CIP are ensured, and the requirements for no-fault operation and low maintenance are guaranteed with the solid pump structure.

In addition, the GOBOR pump avoids disadvantages in all design details, such as the precise balancing design, installation of the booster, and outside spring of the shaft seal(without using the inside spring).

Among the GOBOR pumps, most sanitary centrifugal pumps use the same mechanical seal, which simplifies installation and warehousing of spare parts. The GOBOR pump products have the same modular features, which simplifies maintenance, modification and seal change.


Shaft seal


The GKH sanitary centrifugal pump is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made ofstainless seal, silicon carbide or tungsten alloy. The dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. The seal ring of the water injection type seal is a durable lip seal. The series of pump products can also be equipped with the double end mechanical seal.


Sanitary Water Pump technical data (0.75KW)


A|B|C|D|E|F|GH|K|J|R|P |KG

|72 |239 |141|200 |45 |137//177|80 | 158 | 240/260 | 185 |62 |270/310|26

Medium:20℃ clean water

Rotating Speed:2900RPM

Impeller diameter: maximumφ130mm

Inlet Diameter:D1φ38mm

Emor:±5%

Frequency:50Hz

outlet Diameter:D2φ32mm


Materials


Materials of liquid passing parts:AISI316L or AISI304 stainless steel Materials of other parts:AISI304 stainless steel Outer surface:titanium Inner surface:miror polishing 9.4 or titanium Liquid passing rubber seal materialEPDM FRMNBR




Product Tags:

sanitary vacuum pump



food grade liquid pump


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

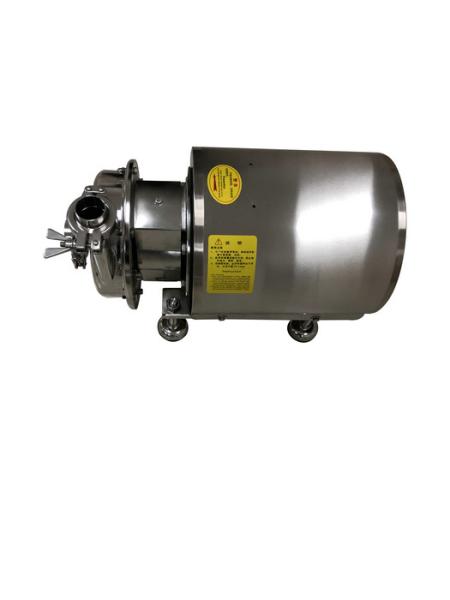

Single Stage Sanitary Piston Pump , Food Grade Sanitary Lobe Pump Images
